Rode FilmMaker Wireless Kit

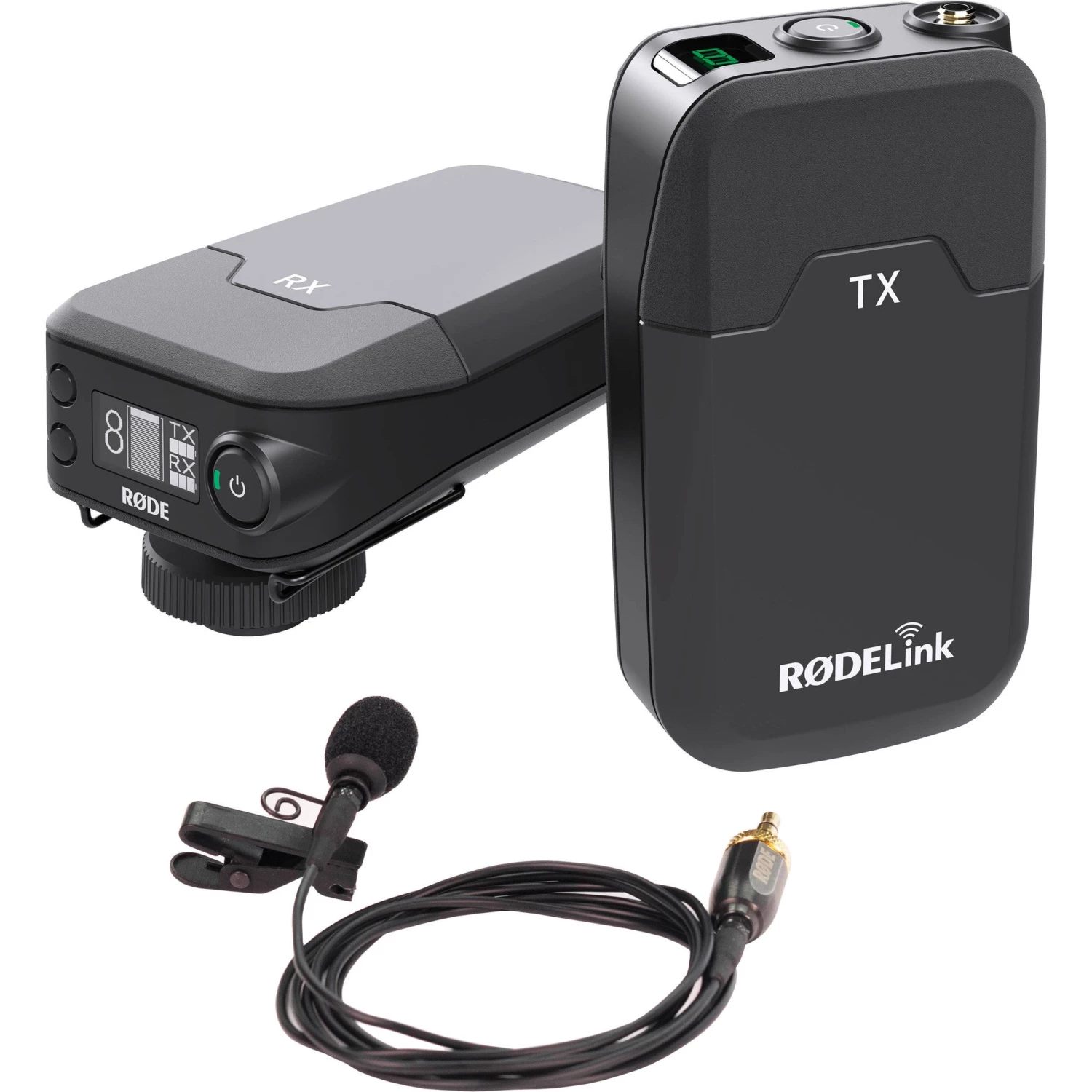

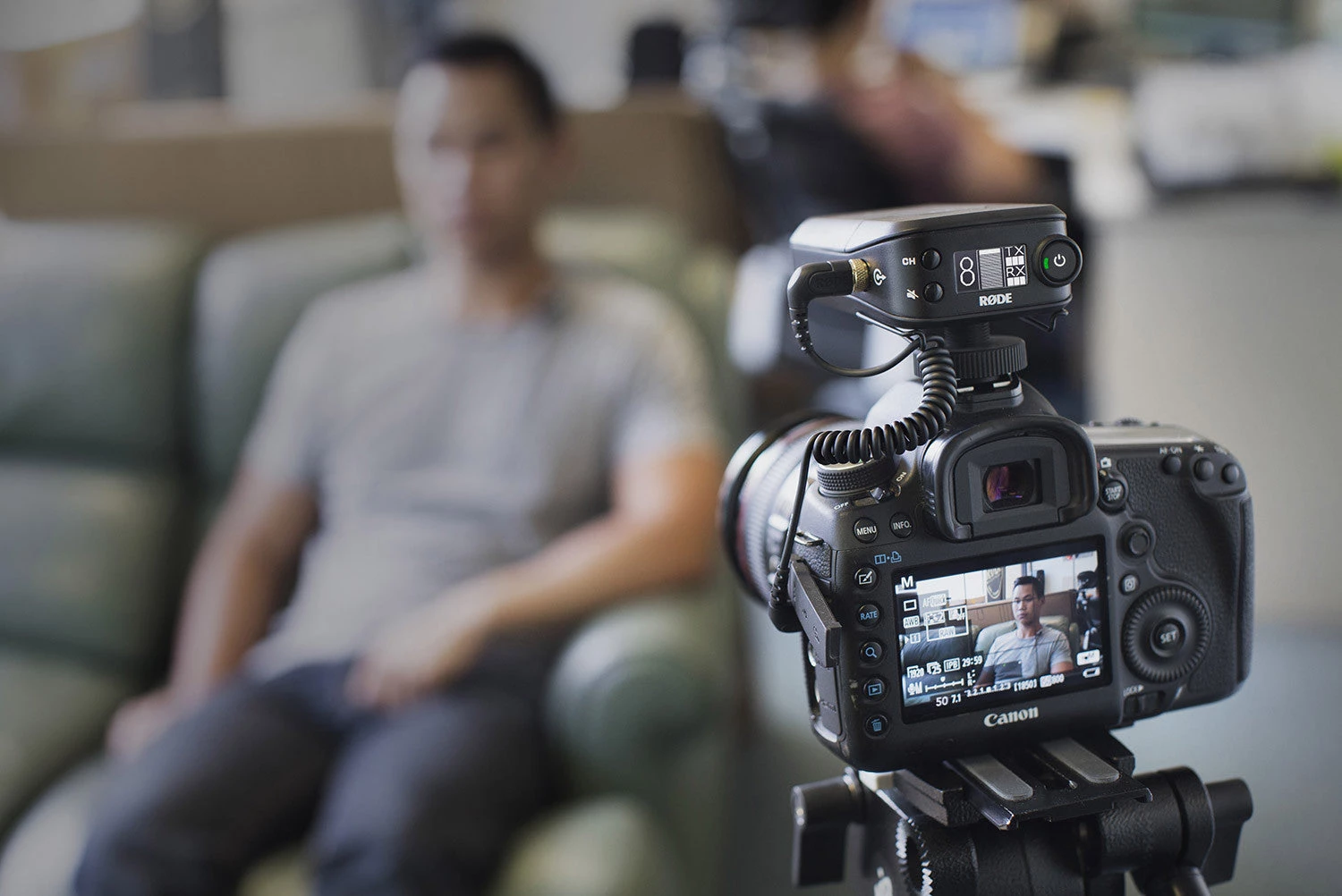

RØDELink represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8″ thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.

* range estimations based on optimal environment

• Series II, 2.4GHz digital transmission
• 128-bit encryption
• Up to 100 metres range*
• OLED display (on receiver)
• One button pairing
• Three level gain control
• AA battery or USB powered
• Includes broadcast lavalier microphone
• Two year extended warranty when you register your microphone
• RØDELink Filmmaker Kit Specifications

  Transmission type	2.4GHz Fixed Frequency Agile System
  System dynamic range	112dB
  Range (distance)	Up To 100m
  Frequency range	35Hz – 22kHz
  Maximum output level	1v Rms (2.8v P-p)
  Max input signal level	1v Rms (2.8v P-p)
  Max latency	4ms

  Receiver (RX-CAM)

  Power source	2 X AA Battery Or MicroUSB
  Antenna	Internal
  Output connection	3.5mm TRS Locking Jack Socket – Dual Mono
  Output impedance	300Ω
  Dimensions	111mm X 65mm X 52mm
  Weight	190gm

  Transmitter (TX-BELT)

  Power source	2 X AA Battery Or MicroUSB
  Antenna	Internal
  Input connection	3.5mm TRS Locking Jack Socket
  Input impedance	10kΩ
  Dimensions	111mm X 65mm X 40mm
  Weight	190gm

  Lavalier

  Acoustic Principle	Permanently Polarized
  Active Electronics	JFET impedance converter
  Capsule	0.10″
  Address Type	End
  Frequency Range	60Hz – 18kHz
  Output Impedance	3000Ω
  Maximum SPL	110dB SPL (@ 1kHz, 1% THD into 1KΩ load)
  Maximum Output Level	189.0mV
  Sensitivity	-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
  Equivalent Noise Level (A-weighted)	25dB-A
  Weight	1.00gm
  Dimensions	12.00mmH x 4.50mmW x 4.50mmD
